AIREFLEX™ Acoustic Material Solutions
Here are the AIREFLEX product range used in Automotive and HVAC applications. The information is expanded from the original specification table to provide clearer understanding for customers, engineers, and project stakeholders.
Automotive Application
AIREFLEX (AT) Series
The AIREFLEX (AT) series is designed specifically for automotive applications, particularly for sound insulation and interior components. These materials are optimized for thermoforming and vacuum forming processes, ensuring ease of processing and consistent quality.
Available Grades
The available grades under the Automotive series include AF (AT) 19T, AF (AT) 19VI, AF (AT) 19VX, and AF (AT) 19VP.
All Automotive grades have a specific gravity of approximately 1.9, providing a balanced combination of weight, stiffness, and acoustic performance.
In terms of processing, AF (AT) 19T is suitable for thermoforming, while AF (AT) 19VI, AF (AT) 19VX, and AF (AT) 19VP are designed for vacuum forming processes. This allows flexibility in manufacturing depending on equipment and product design.
For adhesion performance, most Automotive grades are compatible with glue and felt lamination. AF (AT) 19VP is specially designed to bond effectively with PU foam, making it suitable for applications requiring foam integration.
Regarding odor performance, AF (AT) 19T and AF (AT) 19VI exhibit normal smell characteristics, while AF (AT) 19VX and AF (AT) 19VP are engineered to be low-odor or odor-free, meeting stricter automotive interior requirements.

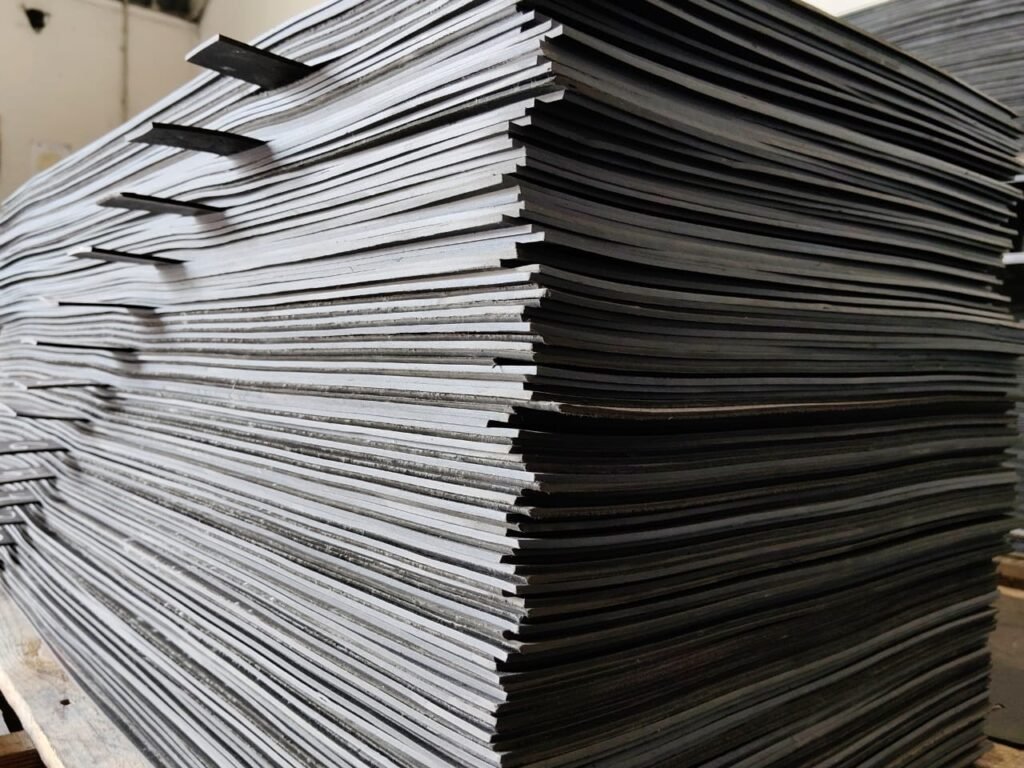

All Automotive AIREFLEX products comply with RoHS and REACH regulations, ensuring environmental and regulatory safety. The standard color for this series is black, and all grades demonstrate good foldability, which supports ease of handling and installation.
| Grade | Specific Gravity | Processing Method | Adhesion / Lamination | Odor Performance | Special Feature | Compliance | Thickness Range | Width Range |
|---|---|---|---|---|---|---|---|---|
| AF (AT) 19T | ~1.9 | Thermoforming | Glue & Felt Lamination | Normal smell | — | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (AT) 19VI | ~1.9 | Vacuum Forming | Glue & Felt Lamination | Normal smell | — | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (AT) 19VX | ~1.9 | Vacuum Forming | Glue & Felt Lamination | Low-odor / Odor-free | Suitable for stricter automotive interior requirements | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (AT) 19VP | ~1.9 | Vacuum Forming | PU Foam Bonding + Glue/Felt Lamination | Low-odor / Odor-free | Designed for PU foam integration | RoHS & REACH | 1-4 mm | 1000 mm |
HVAC Application – AIREFLEX (HV) Series
The AIREFLEX (HV) series is developed for HVAC applications, particularly for acoustic insulation and vibration damping in air handling systems and ducting.
Available Grades
The HVAC series includes AF (HV) 15S, AF (HV) 18S, AF (HV) 20S, AF (HV) 23S, and AF (HV) 25S.
These grades cover a range of specific gravity from 1.5 to 2.5, allowing selection based on required density, acoustic performance, and mechanical strength.
All HVAC grades meet V2 flammability classification, making them suitable for HVAC safety standards. They are compatible with glue and felt adhesion systems, ensuring secure installation in HVAC assemblies.
The odor level for all HVAC grades is rated as normal, which is acceptable for non-cabin applications. All products comply with RoHS and REACH requirements.

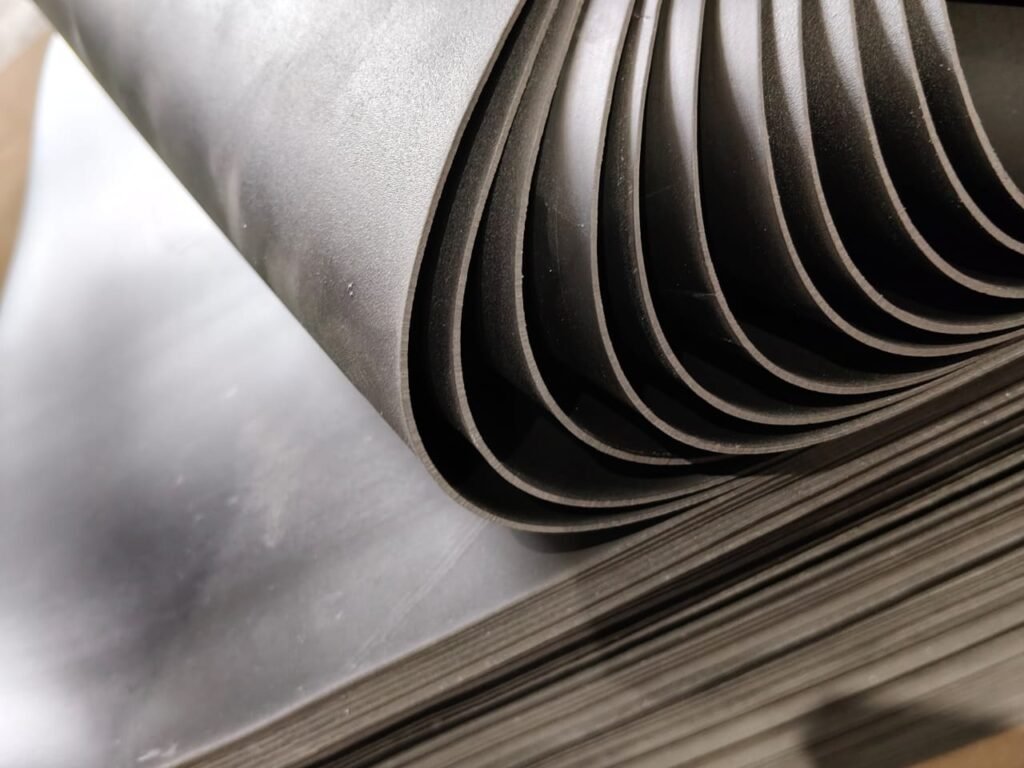

The standard color for the HVAC series is black, and all grades offer good foldability, allowing easy handling, cutting, and installation during system assembly.
| Grade | Specific Gravity | Flammability | Adhesion / Lamination | Odor Performance | Compliance | Thickness Range | Width Range |
|---|---|---|---|---|---|---|---|
| AF (HV) 15S | ~1.5 | V2 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (HV) 18S | ~1.8 | V2 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (HV) 20S | ~2.0 | V2 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (HV) 23S | ~2.3 | V2 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (HV) 23FR | ~2.3 | V0 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
| AF (HV) 25FR | ~2.5 | V0 | Glue & Felt Adhesion | Normal | RoHS & REACH | 1-4 mm | 1000 mm |
CUSTOMIZED COMPOUNDING SERVICES
We provide tailored polymer compounding solutions designed to meet specific performance and processing requirements. Our expertise in material formulation allows us to optimize density, durability, acoustic performance, and processability for various applications such as automotive, HVAC, sport granules application and industrial components.
Working closely with customers, we develop high-performance, cost-efficient, and sustainable compounds, including options with recycled content, while ensuring compliance with global standards such as RoHS and REACH.
| Material | Full Name | Typical SG | Possible SG Range | Notes |
|---|---|---|---|---|
| NR | Natural Rubber | 0.92 – 0.94 | 1.0 – 1.6 | Very elastic, commonly increased SG using fillers (CaCO3, carbon black). |
| SBR | Styrene Butadiene Rubber | 0.94 – 0.98 | 1.0 – 1.7 | Good abrasion resistance; widely used in automotive rubber parts. |
| NBR | Nitrile Butadiene Rubber | 0.96 – 1.02 | 1.1 – 1.7 | Oil-resistant rubber; SG increases with filler and acrylonitrile content. |
| EPDM | Ethylene Propylene Diene Monomer | 0.86 – 0.90 | 1.0 – 1.6 | Excellent weather, ozone, and heat resistance; commonly used in seals, roofing, and automotive parts. |
| CPE | Chlorinated Polyethylene | 1.10 – 1.18 | 1.2 – 1.8 | Good weather and flame resistance; commonly used in industrial sheets. |
| PVC | Polyvinyl Chloride | 1.30 – 1.45 | 1.3 – 2.0 | Higher density polymer; easy to increase SG with mineral fillers. |
| FKM | Fluoroelastomer (Viton type) | 1.80 – 1.90 | 1.8 – 2.0 | High-performance rubber with excellent chemical and heat resistance. |
| Silicone | Silicone Rubber (VMQ) | 1.10 – 1.25 | 1.1 – 1.6 | Excellent temperature resistance; SG adjustable with fillers. |
Summary
The AIREFLEX (AT) and AIREFLEX (HV) product ranges provide reliable solutions for automotive and HVAC applications respectively. With controlled density, good adhesion performance, regulatory compliance, and consistent foldability, these materials are suitable for a wide range of acoustic and insulation needs.
Sustainable Manufacturing
AIREFLEX products are manufactured using a responsible recycling process, where a controlled percentage of recovered production materials is reintegrated into the formulation.
This approach supports material circularity, reduces manufacturing waste, and promotes more sustainable resource utilization without compromising product performance, quality, or durability.
By incorporating recycled content within our production process, AIREFLEX contributes to environmentally responsible manufacturing practices aligned with modern sustainability standards.
Key Sustainability Benefits
♻️ Recycled Content Integration – Selected recycled materials are reused within the formulation.
🌍 Reduced Material Waste – Supports circular manufacturing and waste reduction.
⚙️ Consistent Performance – Maintains the same mechanical and acoustic performance standards.
🏭 Environmentally Responsible Production – Supports sustainability initiatives in material processing.
